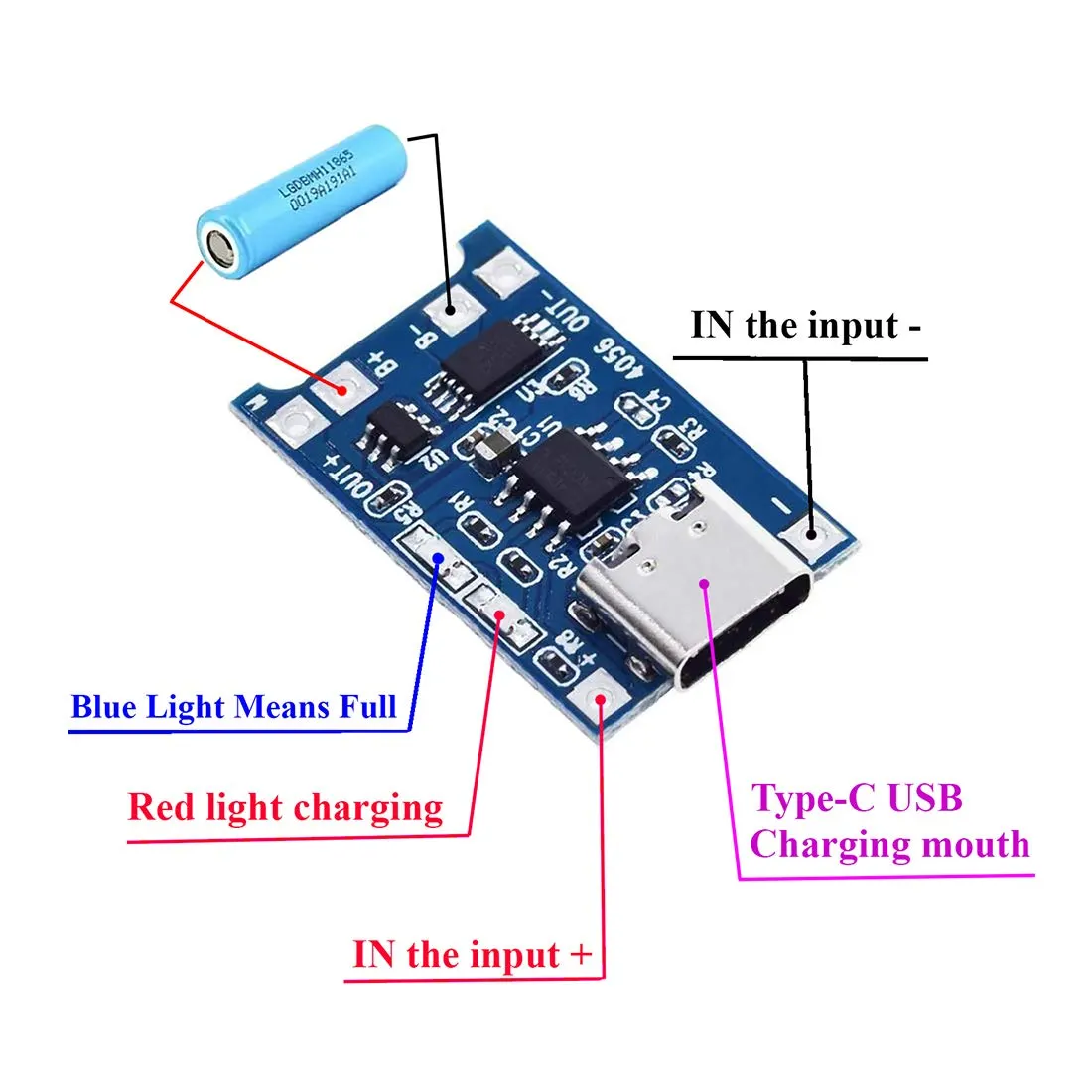

TP4056 Type-C 18650 Battery Charging Module – 5V 1A with Protection
This TP4056 charging module with USB Type-C input is a reliable solution for charging 3.7V lithium-ion batteries like 18650 cells. It offers integrated safety features including overcharge, over-discharge, and short-circuit protection. Ideal for modern electronics powered by lithium batteries.
Key Features:
- Input Voltage: 5V via USB Type-C
- Charging Current: 1A (adjustable)
- Battery Type: 3.7V Li-ion (18650)
- Protection ICs: DW01 + FS8205
- Built-in Protection: Overcharge, over-discharge, overcurrent, short-circuit
- LED Indicators: Red = Charging, Blue = Fully Charged
- Compact and Type-C ready for modern DIY projects
Package Includes:
- 1x TP4056 Type-C 5V 1A Lithium Battery Charging Module (With Protection)
Note: Battery not included. Use only with high-quality 3.7V lithium-ion batteries.
️ Ideal For:
- Charging 18650 lithium-ion batteries
- Power bank circuits
- Portable IoT or ESP32 projects
- Type-C enabled DIY electronics
- Battery-powered Arduino systems
