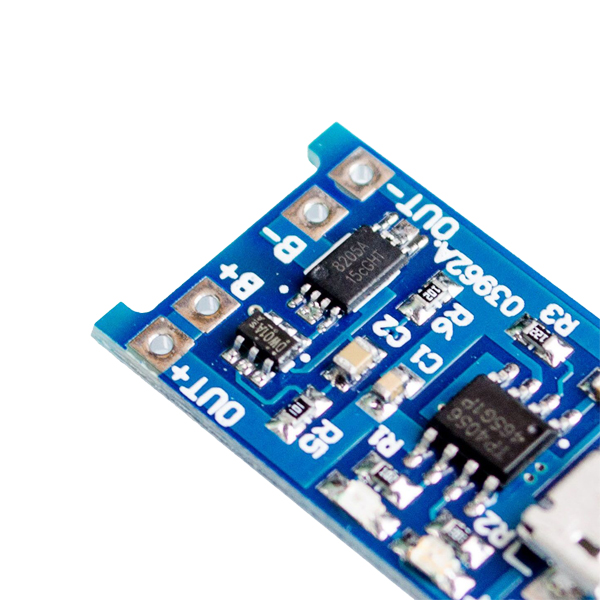

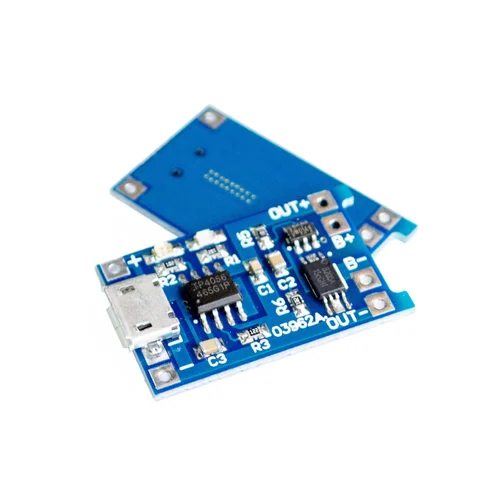

TP4056 Micro USB Lithium Battery Charging Board – 5V 1A with Protection
The TP4056 Charging Module is a compact and reliable solution for charging single-cell 18650 lithium-ion batteries via Micro USB or direct 5V input. It includes overcharge, over-discharge, and short-circuit protection, making it ideal for battery-powered DIY projects.
Key Features:
- Charging Chip: TP4056
- Input Voltage: 5V (Micro USB or pads)
- Charge Current: 1A
- Battery Support: 3.7V lithium-ion / 18650
- Protection ICs: DW01 + FS8205
- Protections: Overcharge, over-discharge, overcurrent, short-circuit
- LED Indicators: Red = Charging, Blue = Full
Package Includes:
- 1x TP4056 Micro USB 5V 1A Battery Charging Board with Protection
Note: Battery not included. Use only with quality lithium-ion cells.
️ Ideal For:
- Charging 18650 lithium batteries
- Power bank circuits
- DIY portable electronics
- Solar charging systems
- Battery-powered Arduino/ESP32/IoT projects
